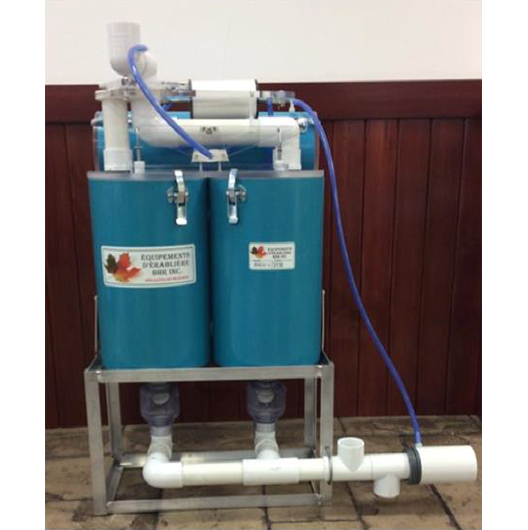

Smart Release Devices

(1 000 Notches)

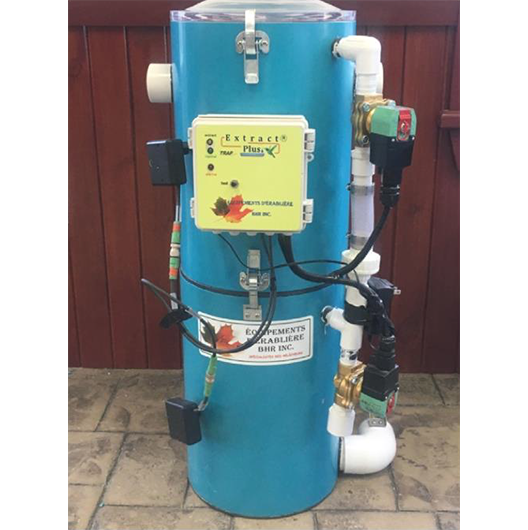

EXTRACT PLUS S 2.0

DIMENSIONS DOUBLE (8" X 27")
MANIFOLD NUMBER OF INPUTS 8" x 27" 6 x 1 "
SAP OUTLET HEIGHT 1 x 3" 19 "
VACUUM PUMP OUTPUT 1 x 1 ½ "
SMART VALVE 2 x 1"

EXTRACT PLUS 2.0

DIMENSIONS DOUBLE (8" X 27")
MANIFOLD NUMBER OF INPUTS 8" x 27" 6 x 1 "
SAP OUTLET HEIGHT 1 x 3" 19 "
VACUUM PUMP OUTPUT 1 x 1 ½ "
SMART VALVE 2 x 1"

INCLUANT :

  • WATER METER
  • AUTOMATIC START WITH WATER SUPPLY
  • AUTOMATIC EMPTYING DURING FREEZING

ADDITION OF THE WASHING SYSTEM

EXTRACT PLUS S 2.0R
(With pump system)

DIMENSIONS DOUBLE (8" X 27")
MANIFOLD NUMBER OF INPUTS 8" x 27" 6 x 1 "
SAP OUTLET HEIGHT 1 x 2" 22 "
VACUUM PUMP OUTPUT 1 x 1 ½ "
SMART VALVE 2 x 1"

EXTRACT PLUS 2.0R
(With pump system)

DIMENSIONS DOUBLE (8" X 27")
MANIFOLD NOMBRE D’ENTRÉE  8" x 27" 6 x 1 "
SORTIE DE SÈVE HAUTEUR 1 x 2" 22 "
SORTIE POMPE A VIDE 1 x 1 ½ "
VALVE INTELLIGENTE  2 x 1"

INCLUANT :

  • WATER METER
  • AUTOMATIC START WITH WATER SUPPLY
  • AUTOMATIC EMPTYING DURING FREEZING

ADDITION OF THE WASHING SYSTEM

(3 000 Notches)

EXTRACT PLUS S 2.5

DIMENSIONS DOUBLE (12" X 18")
MANIFOLD NUMBER OF INPUTS 12" x 18" 4 x 1 ¼ "
SAP OUTLET HEIGHT 1 x 3" 25 "
VACUUM PUMP OUTPUT 1 x 1 ½ "
SMART VALVE 2 x 1"

EXTRACT PLUS 2.5

DIMENSIONS DOUBLE (12" X 18")
MANIFOLD NUMBER OF INPUTS 12" x 18" 4 x 1 ¼ "
SAP OUTLET HEIGHT 1 x 3" 25 "
VACUUM PUMP OUTPUT 1 x 1 ½ "
SMART VALVE 2 x 1"

INCLUANT :

  • WATER METER
  • AUTOMATIC START WITH WATER SUPPLY
  • AUTOMATIC EMPTYING DURING FREEZING

ADDITION OF THE WASHING SYSTEM

EXTRACT PLUS S 2.5R
(With pump system)

DIMENSIONS DOUBLE (12" X 24")
MANIFOLD NUMBER OF INPUTS 12" x 24" 6 x 1 ¼ "
SAP OUTLET HEIGHT 2 x 2" 29 "
VACUUM PUMP OUTPUT 1 x 1 ½ "
SMART VALVE 2 x 1"

EXTRACT PLUS 2.5R
(With pump system)

DIMENSIONS DOUBLE (12" X 24")
MANIFOLD NUMBER OF INPUTS 12" x 24" 6 x 1 ¼ "
SAP OUTLET HEIGHT 2 x 2" 29 "
VACUUM PUMP OUTPUT 1 x 1 ½ "
SMART VALVE 2 x 1"

INCLUANT :

  • WATER METER
  • AUTOMATIC START WITH WATER SUPPLY
  • AUTOMATIC EMPTYING DURING FREEZING

ADDITION OF THE WASHING SYSTEM $250.00

(5 000 Notches)

EXTRACT PLUS S 5.0

DIMENSIONS DOUBLE (12" X 24")
MANIFOLD NUMBER OF INPUTS 12" x 24" 6 x 1 ¼ "
SAP OUTLET HEIGHT 2 x 3" 25 "
VACUUM PUMP OUTPUT 1 x 2 "
SMART VALVE 2 x 1 ¼ "

EXTRACT PLUS 5.0

DIMENSIONS DOUBLE (12" X 24")
MANIFOLD NUMBER OF INPUTS 12" x 24" 6 x 1 ¼ "
SAP OUTLET HEIGHT 1 x 3" 25 "
VACUUM PUMP OUTPUT 1 x 2 "
SMART VALVE 2 x 1 ¼ "

INCLUANT :

  • WATER METER
  • AUTOMATIC START WITH WATER SUPPLY
  • AUTOMATIC EMPTYING DURING FREEZING

ADDITION OF THE WASHING SYSTEM $250.00

EXTRACT PLUS S 5.0R
(With pump system)

DIMENSIONS DOUBLE (18" X 24")
MANIFOLD NUMBER OF INPUTS 12" x 36" 8 x 1 ¼ "
SAP OUTLET HEIGHT 2 x 3" 29 "
VACUUM PUMP OUTPUT 1 x 2 "
SMART VALVE 2 x 1 ¼ "

EXTRACT PLUS 5.0R
(With pump system)

DIMENSIONS DOUBLE (12" X 36")
MANIFOLD NUMBER OF INPUTS 12" x 36" 8 x 1 ¼ "
SAP OUTLET HEIGHT 2 x 3" 29 "
VACUUM PUMP OUTPUT 1 x 2 "
SMART VALVE 2 x 1 ¼ "

INCLUANT :

  • WATER METER
  • AUTOMATIC START WITH WATER SUPPLY
  • AUTOMATIC EMPTYING DURING FREEZING

ADDITION OF THE WASHING SYSTEM

(10 000 Notches)

EXTRACT PLUS S 10.0

DIMENSIONS DOUBLE (12" X 36")
MANIFOLD NUMBER OF INPUTS 12" x 36" 8 x 1 ¼ "
SAP OUTLET HEIGHT 3 x 3" 25"
VACUUM PUMP OUTPUT 1 x 2 "
SMART VALVE 2 x 2 "

EXTRACT PLUS 10.0

DIMENSIONS DOUBLE (12" X 36")
MANIFOLD NUMBER OF INPUTS 12" x 36" 8 x 1 ¼ "
SAP OUTLET HEIGHT 3 x 3" 25"
VACUUM PUMP OUTPUT 1 x 2 "
SMART VALVE 2 x 2 "

INCLUANT :

  • WATER METER
  • AUTOMATIC START WITH WATER SUPPLY
  • AUTOMATIC EMPTYING DURING FREEZING

ADDITION OF THE WASHING SYSTEM

EXTRACT PLUS S 10.0R
(With pump system)

DIMENSIONS DOUBLE (18" X 36")
MANIFOLD NUMBER OF INPUTS 12" x 36" 8 x 1 ¼ "
SAP OUTLET HEIGHT 3 x 3" 33 ½ "
VACUUM PUMP OUTPUT 1 x 2 "
SMART VALVE 2 x 2 "

EXTRACT PLUS S 10.0R
(With pump system)

DIMENSIONS DOUBLE (18" X 36")
MANIFOLD NUMBER OF INPUTS 12" x 36" 8 x 1 ¼ "
SAP OUTLET HEIGHT 3 x 3" 33 ½ "
VACUUM PUMP OUTPUT 1 x 2 "
SMART VALVE 2 x 2 "

INCLUANT :

  • WATER METER
  • AUTOMATIC START WITH WATER SUPPLY
  • AUTOMATIC EMPTYING DURING FREEZING

ADDITION OF THE WASHING SYSTEM

(15 000 Notches)

EXTRACT PLUS S 15.0

DIMENSIONS DOUBLE (12" X 48")
MANIFOLD NUMBER OF INPUTS 12" x 48" 12 x 1 ¼ "
SAP OUTLET HEIGHT 4 x 3" 25"
VACUUM PUMP OUTPUT 1 x 2 "
SMART VALVE 2 x 2 "

EXTRACT PLUS 15.0

DIMENSIONS DOUBLE (12" X 48")
MANIFOLD NUMBER OF INPUTS 12" x 48" 12 x 1 ¼ "
SAP OUTLET HEIGHT 4 x 3" 25"
VACUUM PUMP OUTPUT 1 x 2 "
SMART VALVE 2 x 2 "

INCLUANT :

  • WATER METER
  • AUTOMATIC START WITH WATER SUPPLY
  • AUTOMATIC EMPTYING DURING FREEZING

ADDITION OF THE WASHING SYSTEM

EXTRACT PLUS S 15.0R
(With pump system)

DIMENSIONS DOUBLE (12" X 48")
MANIFOLD NUMBER OF INPUTS 18" x 48" 12 x 1 ¼ "
SAP OUTLET HEIGHT 4 x 3" 29 "
VACUUM PUMP OUTPUT 1 x 2 "
SMART VALVE 2 x 2 "

EXTRACT PLUS S 10.0R
(With pump system)

DIMENSIONS DOUBLE (12" X 48")
MANIFOLD NUMBER OF INPUTS 18" x 48" 12 x 1 ¼ "
SAP OUTLET HEIGHT 4 x 3" 29 "
VACUUM PUMP OUTPUT 1 x 2 "
SMART VALVE 2 x 2 "

INCLUANT :

  • WATER METER
  • AUTOMATIC START WITH WATER SUPPLY
  • AUTOMATIC EMPTYING DURING FREEZING

ADDITION OF THE WASHING SYSTEM

OPTIONS

ADDITION OF SEVE ENTRANCE TO THE MANIFOLD
CHANGE OF INPUT DIMENSIONS AT THE MANIFOLD
LENGTH OF THE NON-STANDARD MANIFOLD
REPLACE VALVE 1" BY VALVE 1¼"
REPLACE VALVE 1¼" WITH VALVE 2"
ADDITION OF AN ANTI-ICE GRID (DEPENDING ON SIZE)
 8" X 27"
12" X 18"
12" X 24"
12" X 27"
12" X 36"
12" X 48"

EXTRACT PLUS R

  • ADDITION OF AN ADDITIONAL LEVEL SENSOR (0-100%) $130.00
  • ADDITION OF THE SYSTEM FOR RECIPROCATING PUMP $1200.00

REVERSE GRADIENTS

(1 000 NOTCHES)
BHR212-V

DIMENSIONS DOUBLE (8" X 16")
MANIFOLD NUMBER OF INPUTS 6" x 18" 4 x 1"
VACUUM PUMP OUTPUT 2 x 1 ¼ " 29"
VACUUM PUMP OUTPUT  1 x 1 ½ "

(3 000 NOTCHES)
BHR214-V

DIMENSIONS DOUBLE (12" X 18")
MANIFOLD NUMBER OF INPUTS 6" x 27" 6 x 1"
VACUUM PUMP OUTPUT 2 x 1 ¼ " 31"
VACUUM PUMP OUTPUT 1 x 1 ½ "

HUMIDITY TRAPS

BHR505

DIMENSIONS SINGLE (8" X 27")
VACUUM PUMP OUTPUT 2 x 2 "

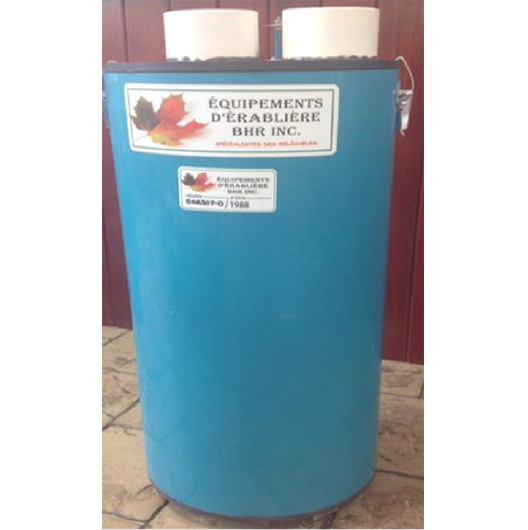

BHR507-D
(ELECTRIC WITH FOAM)

DIMENSIONS SINGLE (10" X 24")
VACUUM PUMP OUTPUT 2 x 3 "

BHR506

DIMENSIONS SINGLE (12" X 24")
VACUUM PUMP OUTPUT 2 x 3 "

*EMERGENCY STOP BUTTON

BHR506-A

DIMENSIONS SINGLE (12" X 24")
VACUUM PUMP OUTPUT 2 x 3 "
AIR EXTRACTION VALVE ¾ "

SMART SYSTEM FOR STOPPING THE VACUUM AND OPENING THE VALVE TO EMPTY THE AIR PASSAGE

SMART HUMIDITY TRAPS

BHR508

Service d’installation Québec
DIMENSIONS DOUBLE (10" X 18")
VACUUM PUMP OUTPUT 2 x 2 "
WATER OUTLET 1 x 2 "

TRANSFER TANK

MODÈLE DIMENSION ENTRÉ D’AIR SORTIE DE SÈVE ENTRÉ DE SÈVE
BHR246 HORIZONTAL 6" x 12" 1 ½" 1 ¼" 4 x 1"
BHR247 HORIZONTAL 6" x 18" 1 ½" 1 ¼" 6 x 1"
BHR247-1 HORIZONTAL 6" x 24" 1 ½" 1 ¼" 8 x 1"
BHR247-2 HORIZONTAL 6" x 27" 1 ½" 1 ¼" 8 x 1 ¼"
BHR247-3 HORIZONTAL 6" x 36" 1 ½" 1 ¼" 10 x 1 ¼"
BHR249-1 HORIZONTAL 8" x 24" 1 ½" 1 ¼" 8 x 1"
BHR249-2 HORIZONTAL 8" x 27" 1 ½" 1 ¼" 8 x 1 ¼"
BHR249-3 HORIZONTAL 8" x 36" 1 ½" 1 ¼" 10 x 1 ¼"
BHR248 VERTICAL 12" x 18" 1 ½" 1 ¼" 5 x 1"
BHR248-1 HORIZONTAL 8" x 12" 1 ½" 1 ¼" 5 x 1"
BHR248-2 HORIZONTAL 10" x 18" 1 ½" 1 ¼" 5 x 1"
BHR248-3 HORIZONTAL 12" x 8" 1 ½" 1 ¼" 5 x 1"
BHR248-4 8" X 16" 1 ½ " 1 ¼ " 5 X 1"
BHR250 VERTICAL 12" x 24" 1 ½" 1 ¼" 5 x 1"
BHR250-1 VERTICAL 12" x 30" 1 ½" 1 ¼" AUCUNE
BHR252 VERTICAL 12" x 36" 1 ½" 1 ¼" 5 x 1"
BHR251 HORIZONTAL 12" x 48" HOLE AS REQUIRED
BHR253-2 18" x 24" INCLUDES HORIZONTAL OR VERTICAL SUPPORT HOLE AS REQUIRED
BHR253-3 18" x 36" INCLUDES HORIZONTAL OR VERTICAL SUPPORT HOLE AS REQUIRED
BHR253-4 18" x 48" INCLUDES HORIZONTAL OR VERTICAL SUPPORT HOLE AS REQUIRED
BHR253-7 18" x 72" INCLUDES HORIZONTAL OR VERTICAL SUPPORT HOLE AS REQUIRED
BHR256 6" x 42" NO HOLE 2 SNAPS
BHR257 8" x 42" NO HOLE 3 SNAPS

OPTIONAL

  • 6", 8" OR 12" ALUMINUM BRACKET
  • ADDITION OF SEVE ENTRY TO THE MANIFOLD

SAP INLET MANIFOLD (MANIFOLD)

MODEL CODE DIMENSION INPUT OUTPUT
BHR216,BHR224  BHR300-A 6" x 12" 4 x 1" 1 x2"
BHR211, BHR210, BHR212  BHR300-B 6" x 18" 4 x 1" 2 x 2"
BHR213,BHR214, BHR224-1 BHR300-C 6" x 27" 6 x 1" 2 x 2"
BHR225 BHR300-I 6" x 27" 8 x 1 ¼" 2 x 3"
BHR217 BHR300-J 6" x 27" 8 x 1 ¼" 2 x 2"
BHR218 BHR300-D 6" x 36" 8 x 1 ¼" 2 x 2"
BHR219 BHR300-H 6" x 36" 8 x 1 ¼" 2 x 3"
BHR220,BHR227-36 BHR300-E 6" x 42" 12 x 1 ¼" 2 x 3"
BHR227-48 BHR300-F 6" x 52" 15 x 1 ¼" 2 x 3"
BHR227-60 BHR300-G 6" x 60" 18 x 1 ¼" 3 x 3"
BHR215, BHR215-3 BHR302-A 8" x 27" 8 x 1 ¼" 2 x 3"
BHR220-3 BHR302-B 8" x 42" 12 x 1 ¼" 2 x 3"
BHR222, BHR221 BHR302-C 8" x 52" 15 x 1 ¼" 4 x 3"
BHR215-VC, BHR215- VC3 BHR304-A 12" x 27" 8 x 1 ¼" 2 x 3"
