WHAT IS A
MECHANICAL RELEASE VALVE ?
This type of release valve operates without electricity. It can be installed on a basin in a non-isolated station.

OUR MODELS OF SIMPLE MECHANICAL RELEASE VALVES

25A01-BHR215-VC

25A01-BHR216

		BASE			COLLECTORS		ENTRIES
PRODUCT NO.	CAPACITY notches	SIZE Ø in x L in	DIRECTION	TANKS	SIZE Ø in x L in	HEIGHT at center	ENTRIES no. x Ø
25A01-BHR216	1 000	12 x 18	V	Simple	6 x 12	20 po	4 x 1 po
25A01-BHR215	6 000	18 x 24	H	Simple	8 x 27	25 po	6 x 1 1/4 po
25A01-BHR215-VC	6 000	18 x 24	H	Simple	12 x 27	25 po	6 x 1 1/4 po

Legend: L = Length H= Horizontal V = Vertical Ø = Diameter in = Inch

OUR MODELS OF DOUBLE MECHANICAL RELEASE VALVES

25A01-BHR211
Similar Models :
25A01-BHR210 et 25A01-BHR213

25A01-BHR218-JVC
Similar Model :
25A01-BHR220-JVC

		BASE			COLLECTORS		ENTRIES
PRODUCT NO.	CAPACITY notches	SIZE Ø in x L in	DIRECTION	TANKS	SIZE Ø in x L in	HEIGHT at center	ENTRIES no. x Ø
25A01-BHR211	1 000	8 x 16	V	Double	6 x 18	18 po	4 x 1 1/4 po
25A01-BHR210	1 500	12 x 12	V	Double	6 x 27	14 po	6 x 1 1/4 po
25A01-BHR213	3 000	12 x 18	V	Double	6 x 27	20 po	6 x 1 1/4 po
25A01-BHR217	4 000	12 x 18	H	Double Side by Side	6 x 27	20 po	6 x 1 1/4 po
25A01-BHR218	4 000	12 x 18	H	Double	6 x 36	20 po	8 x 1 1/2 po
25A01-BHR217-2	5 000	12 x 24	H	Double Side by Side	6 x 36	21 1/2 po	8 x 1 1/2 po
25A01-BHR218-2	5 000	12 x 24	H	Double	6 x 48	20 po	10 x 1 1/2 po
25A01-BHR219	10 000	18 x 18	H	Double Side by Side	6 x 36	24 po	8 x 1 1/2 po
25A01-BHR220	10 000	18 x 18	H	Double	6 x 42	24 po	10 x 1 1/2 po

Legend : L = Length H= Horizontal V = Vertical Ø =Diameter in = Inch

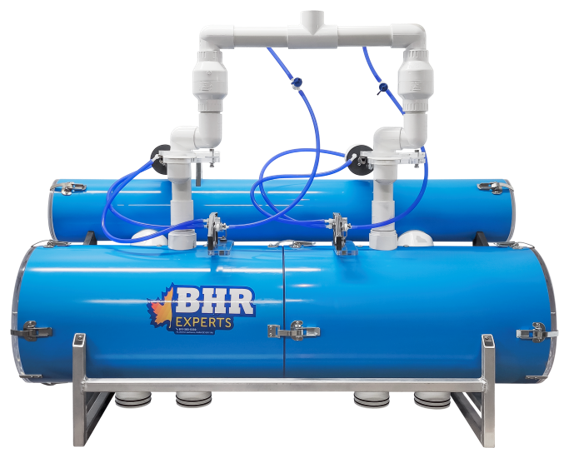

MECHANICAL RELEASE VALVES
WITH JVC SYSTEM

These release valves operate without electricity. They can be installed on a basin in a non-isolated station. The JVC system can reduce recoil by 50% due to its two independently working valves. It is more effective when the vacuum is higher.

25A01-BHR210-JVC
Similar Model :
25A01-BHR213-JVC

25A01-BHR218-JVC
Similar Model :
25A01-BHR220-JVC

25A01-BHR217-2-JVC
Similar Model :
25A01-BHR217-JVC

25A01-BHR219-JVC

		BASE			COLLECTORS		ENTRIES
PRODUCT NO.	CAPACITY notches	SIZE Ø in x L in	DIRECTION	TANKS	SIZE Ø in x L in	HEIGHT at center	ENTRIES no. x Ø
25A01-BHR210-JVC	1 500	12 x 12	V	Double	6 x 27	14 po	6 x 1 1/4 po
25A01-BHR213-JVC	3 000	12 x 18	V	Double	6 x 27	20 po	6 x 1 1/4 po
25A01-BHR217-JVC	4 000	12 x 18	H	Double Side by Side	6 x 27	20 po	6 x 1 1/4 po
25A01-BHR218-JVC	4 000	12 x 18	H	Double	6 x 36	20 po	8 x 1 1/2 po
25A01-BHR217-2-JVC	5 000	12 x 24	H	Double Side by Side	6 x 36	21 1/2 po	8 x 1 1/2 po
25A01-BHR218-2-JVC	5 000	12 x 24	H	Double	6 x 48	20 po	10 x 1 1/2 po
25A01-BHR219-JVC	10 000	18 x 18	H	Double Side by Side	6 x 36	24 po	8 x 1 1/2 po
25A01-BHR220-JVC	10 000	18 X 18	h	Double	6 x 42	24 po	10 x 1 1/2 po

Legend : L = Length H= Horizontal V = Vertical Ø = Diameter in = Inch

OPTIONS

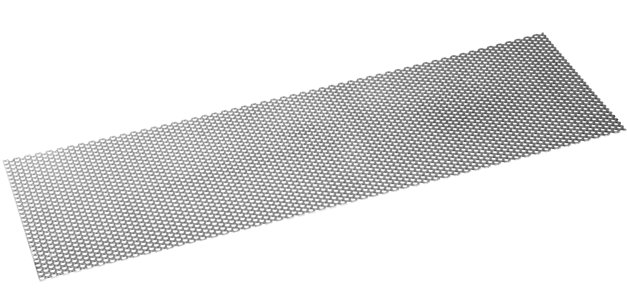

ANTI-ICE GRID FOR COLLECTOR
